Klipsch KPT-8000M surround speaker smaller rooms
Klipsch KPT-8000M surround speaker
en hoogwaardige, zeer esthetische surround-luidspreker die perfect is voor kleinere bioscopen waar kosteneffectiviteit een belangrijk doel is, de KPT-8000M is ontworpen voor flexibele zijwand- of plafondplaatsingen, waardoor het een uitstekende keuze is voor de geavanceerde, multichannel digitale geluidsformaten van vandaag.
FREQUENCY RESPONSE1 (+/- 3 dB) 75 Hz – 20 kHz (–10 dB @ 48 Hz)
POWER HANDLING2 AES: 100 watts (21V)
IEC: 125 watts (23.5V)
MAXIMUM SPL3 116 dB Continuous
122 dB Peak
SENSITIVITY4 97.5 dB @ 2.83V / 1M
95 dB @ 1W / 1M
COVERAGE Horizontal: 90° +/– 20° 2 kHz – 20 kHz
Vertical: 90° +20°/–40° 2 kHz – 20 kHz
DIRECTIVITY INDEX (DI) 7.5 dB +/- 1 dB 2 kHz – 20 kHz
DIRECTIVITY FACTOR (Q) 5.6 2 kHz – 20 kHz
NOMINAL IMPEDANCE 8 ohms, (minimum 4.4 ohms @ 217 Hz)
PRODUCT OVERVIEW
CROSSOVER FREQUENCY 1.9 kHz 12 dB/Octave LF 18 dB/Octave HF
FEATURES
COMPONENTS One K-8-ST 8" woofer
One K-103-TI-KP 1” titanium compression
driver on a K-802 horn

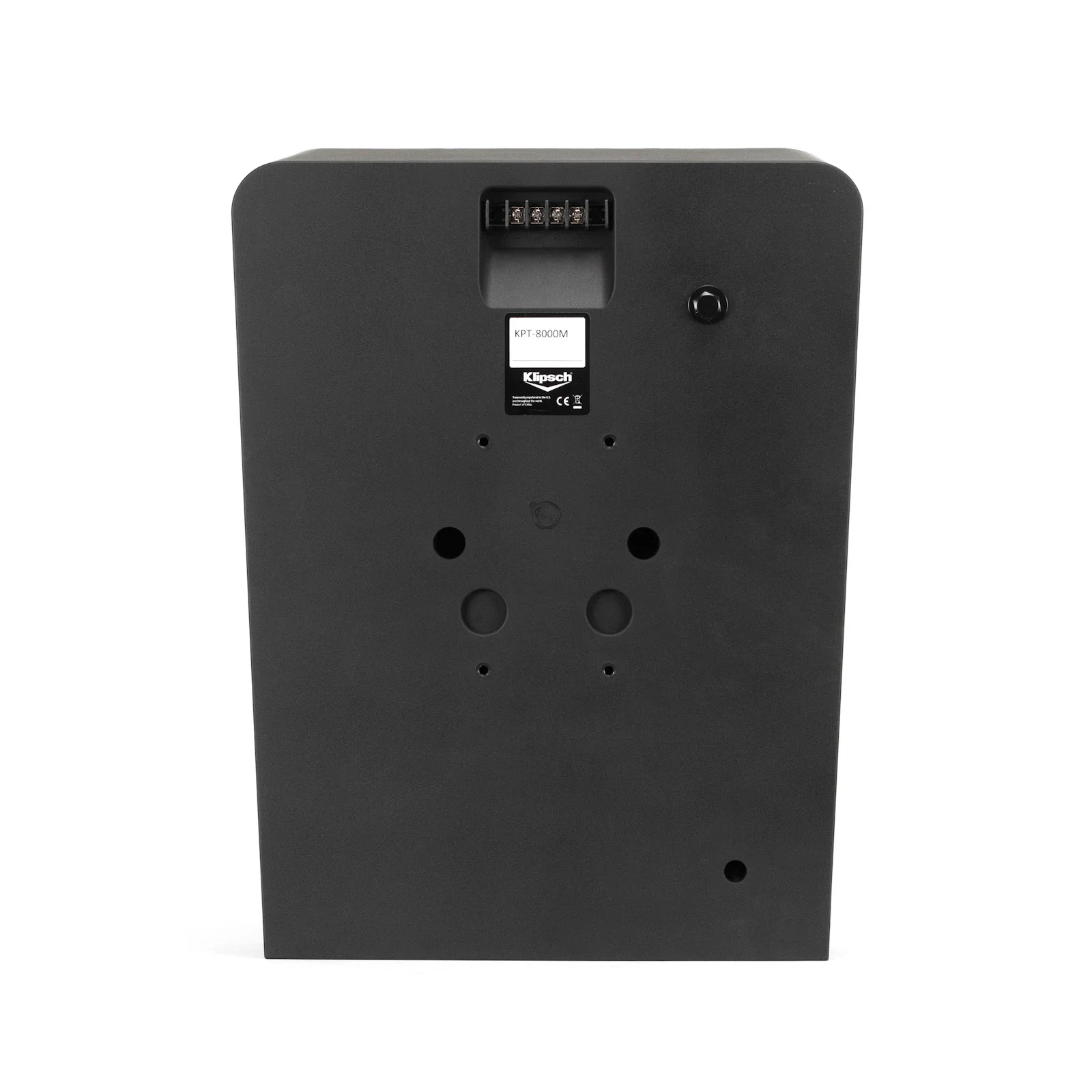

INPUT CONNECTION Four point barrier strip
BRACKET SCREW PATTERN 4 screw: 2.75” (6.9cm) x 5” (12.7cm)
INCLUDED SCREWS (4) 1.125” (2.86cm) 1/4
Bottom: 13” (33cm)
ENCLOSURE MATERIAL ABS + 10% glass
GRILLE Power-coated steel
HEIGHT 18.7” (47.5cm)
WIDTH Top: 14.7” (37.3cm)
Bottom: 13” (33cm)
DEPTH Top: 7.2” (18.3cm)
Bottom: 4.7” (11.9cm)
WEIGHT 15.77 lbs (7.15kg)
TILT Built-in 8° downward angle with 15°
angle option
SAFETY CABLE INSERT 3/8” 1/4-20 threaded
•
•
•
8-inch woofer with 1.5” voice coil
1-inch titanium high-frequency
compression driver
Patented elliptical insert 90° x 90°
Tractrix® Horn
•
•
Built-in 8° downward angle with 15°
angle option
1/4-20 UNC 2A threaded inserts
accommodate optional Klipsch or
industry standard brackets
ACCESSORIES
SB-6 mounting bracket
SB-7 mounting bracket
SB-9 mounting bracket
